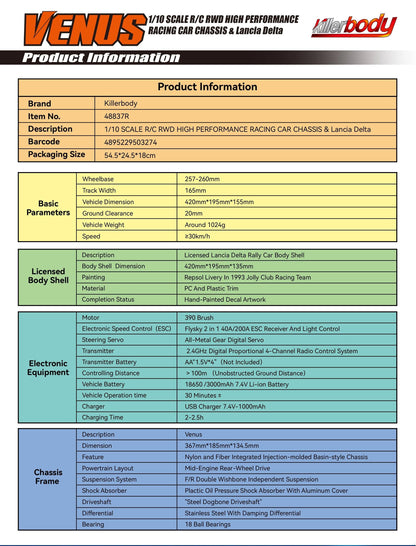

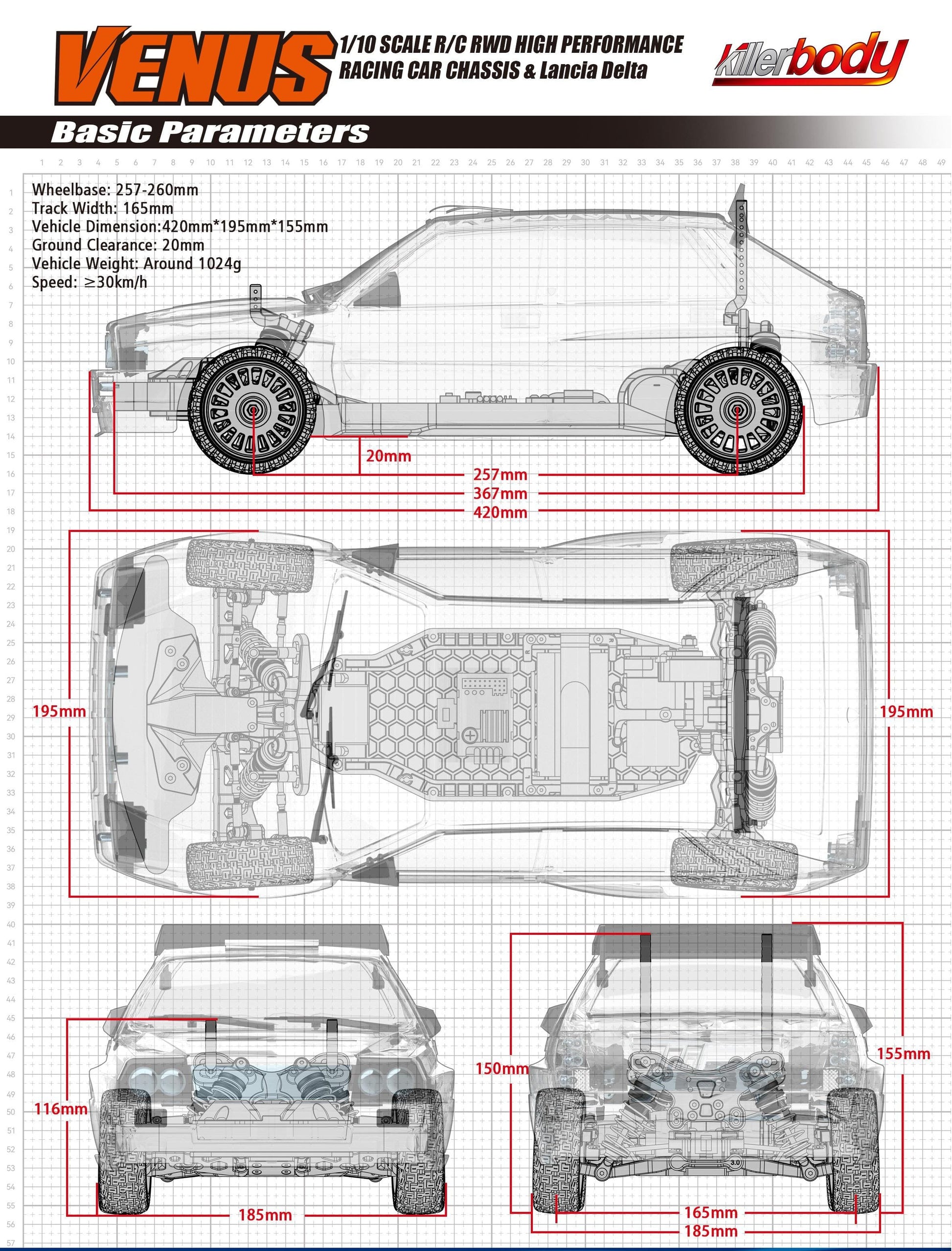

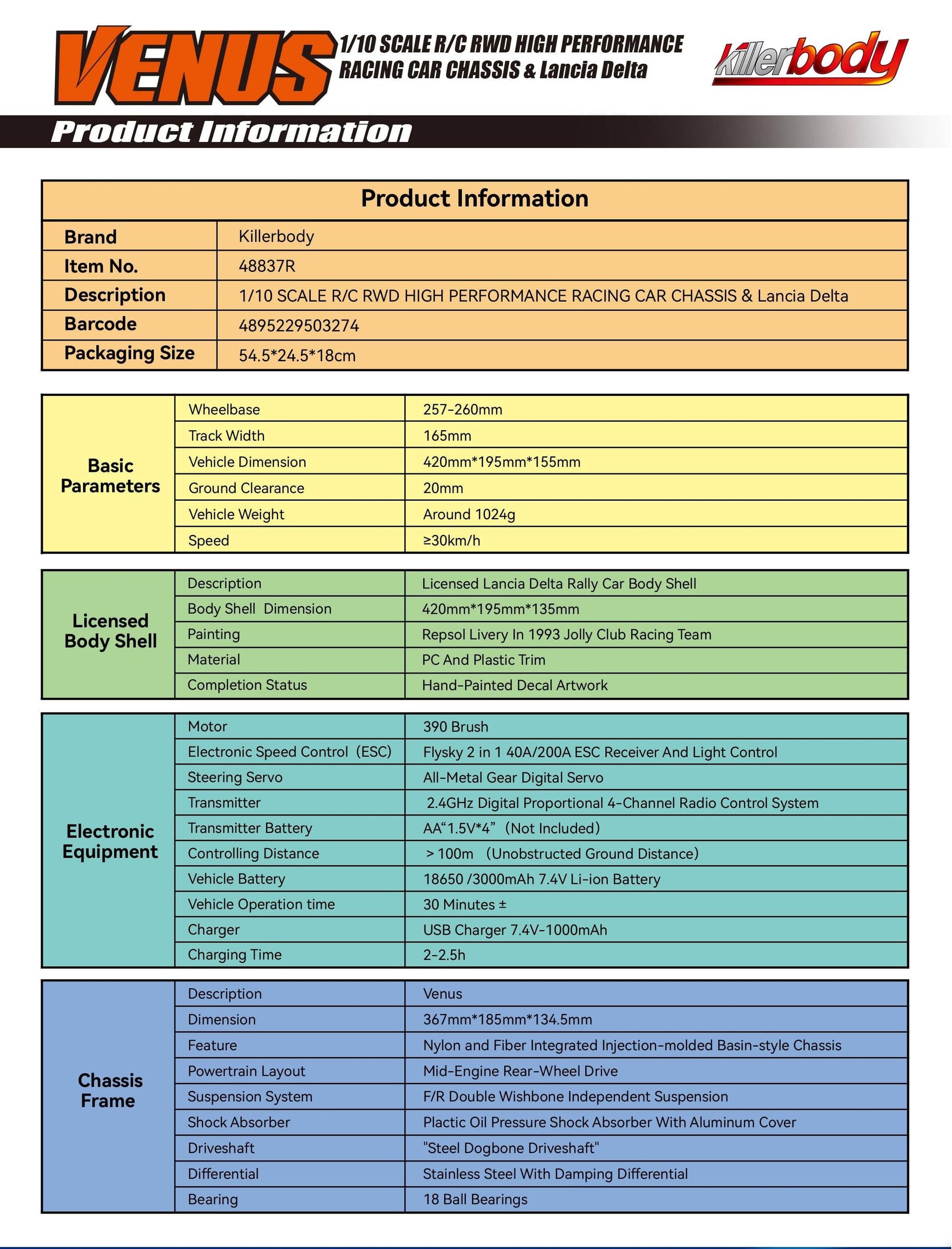

| Basic Parameters |
Wheelbase |
257-260mm |
| Track Width |
165mm |
| Vehicle Dimension |
420mm*195mm*155mm |
| Ground Clearance |
20mm |
| Vehicle Weight |
Around 1024g |
| Speed |
≥30km/h |

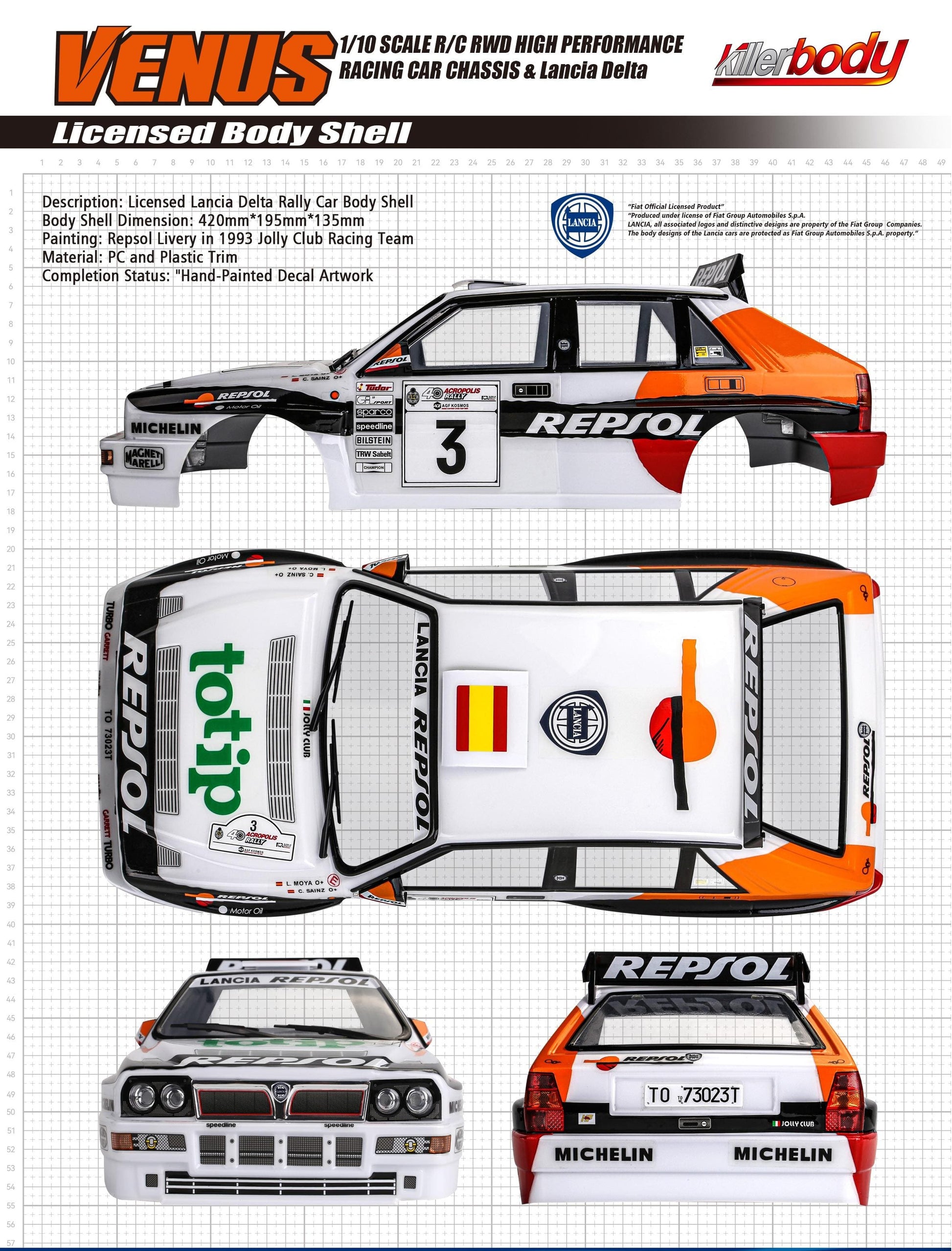

| Licensed Body Shell |
Description |

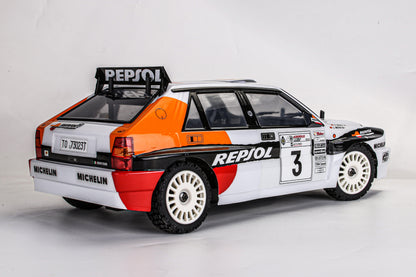

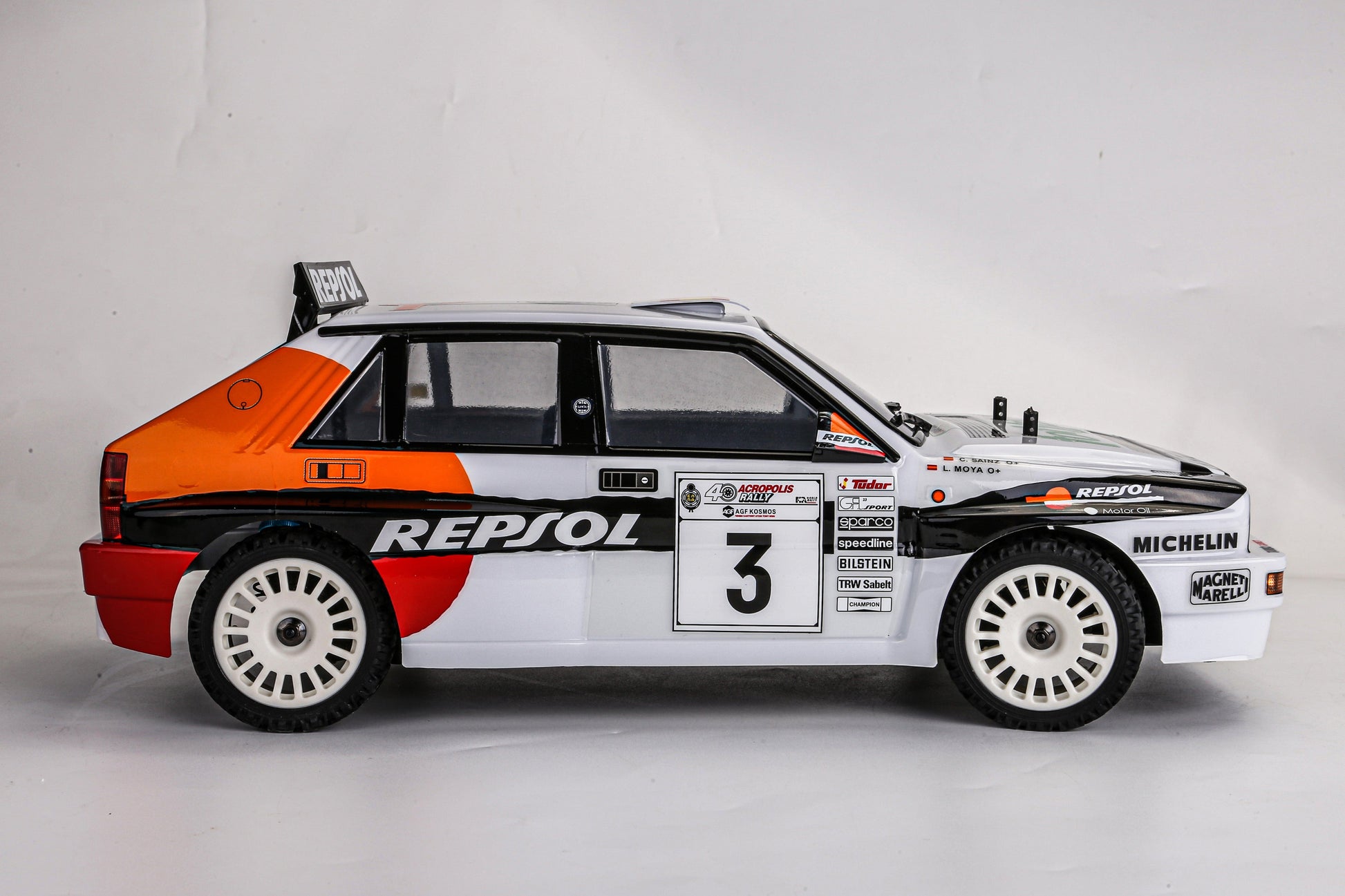

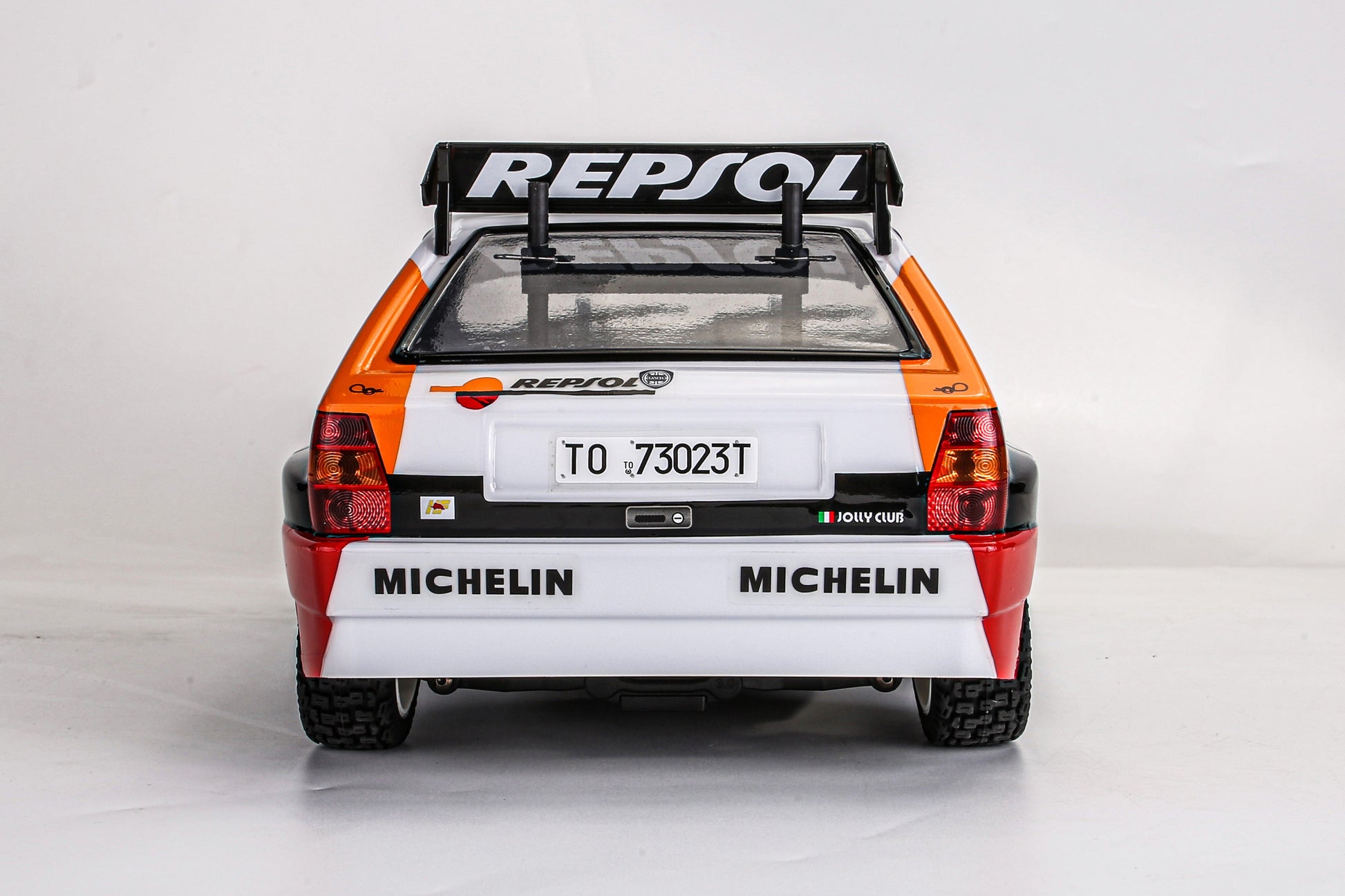

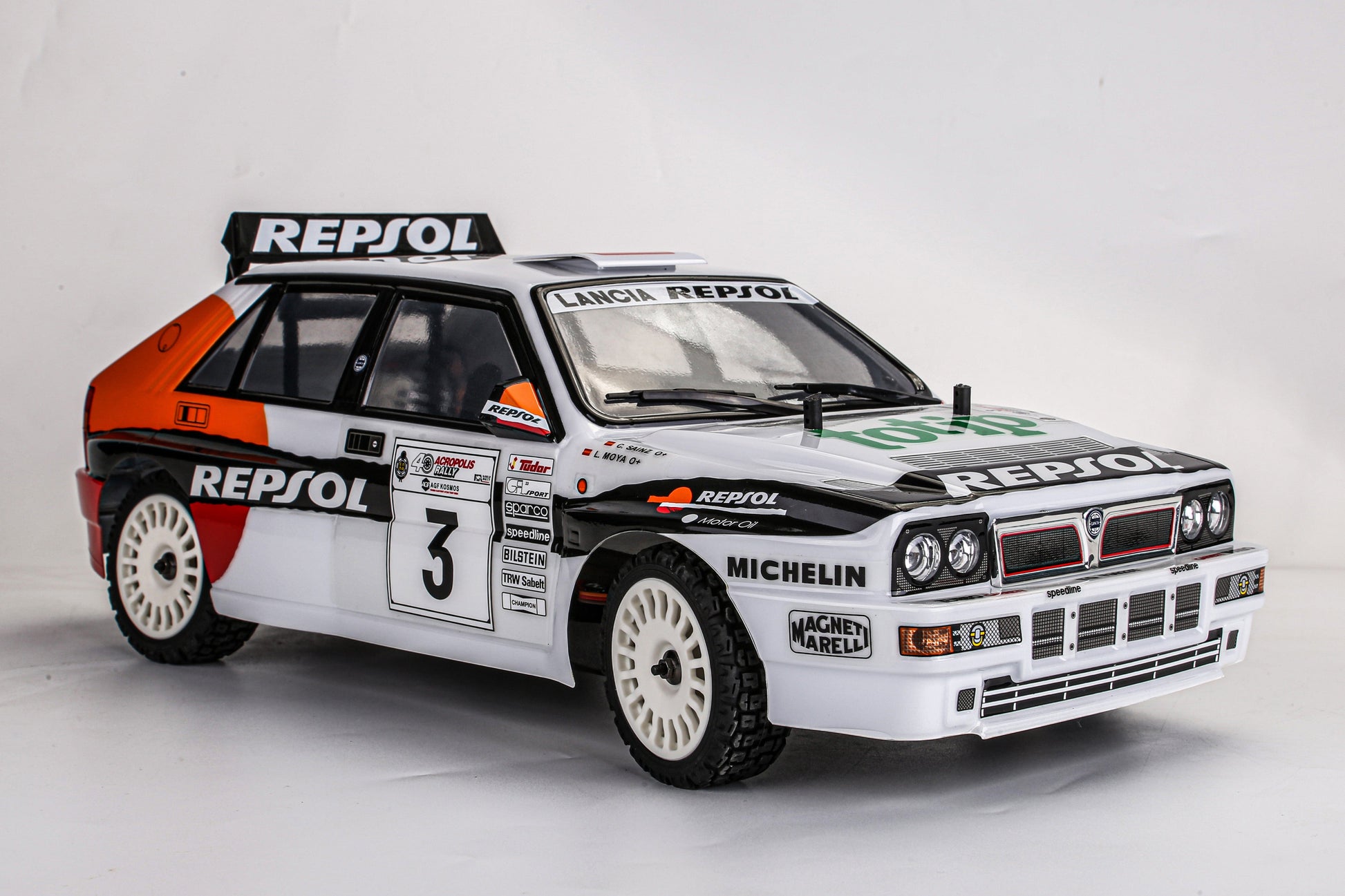

Licensed Lancia Delta Rally Car Body Shell |
| Body Shell Dimension |
420mm*195mm*135mm |
| Painting |
Repsol Livery In 1993 Jolly Club Racing Team
|
| Material |
PC And Plastic Trim |
| Completion Status |
Hand-Painted Decal Artwork |

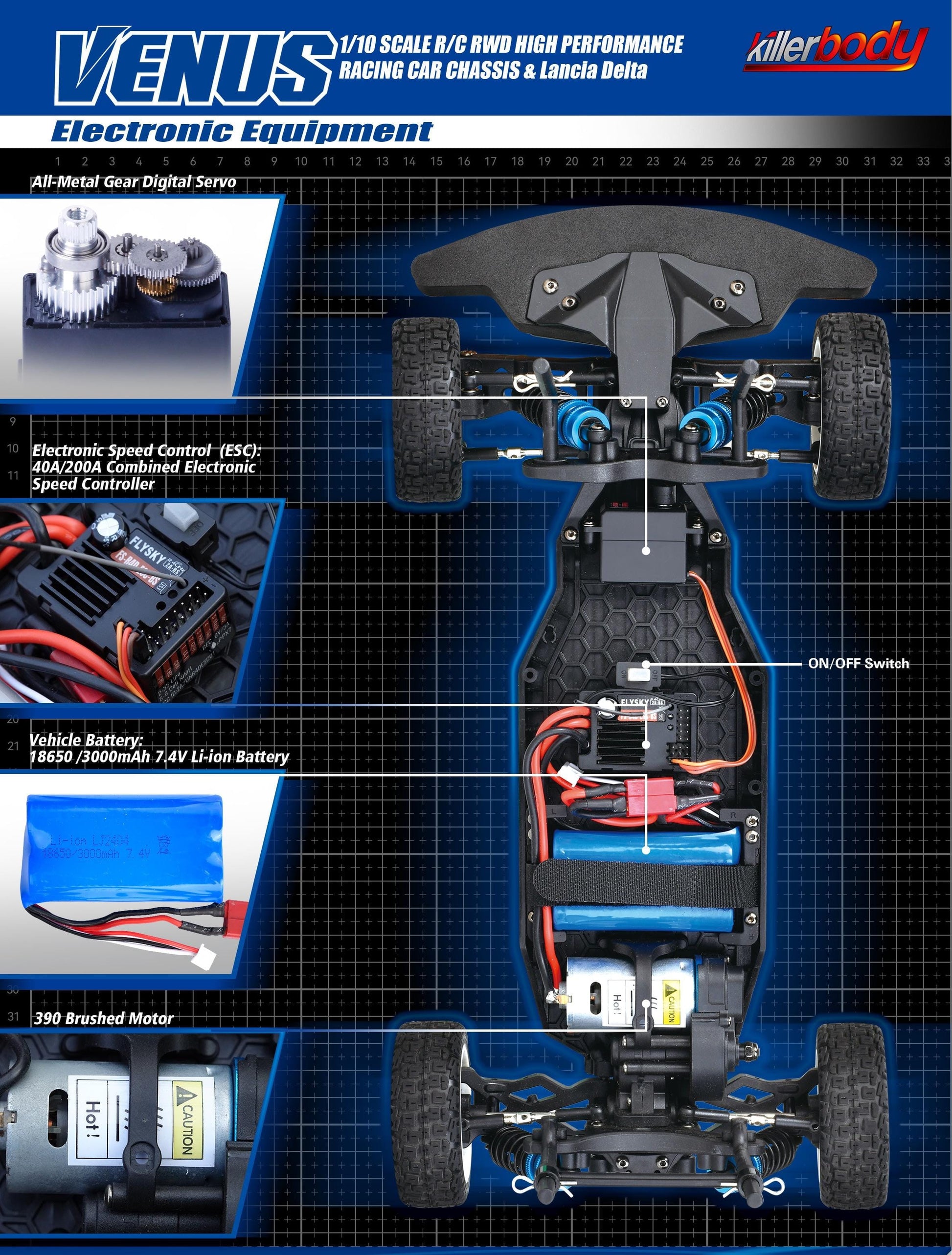

Electronic
Equipment |
Motor |
390 Brush |
| Electronic Speed Control (ESC) |
Flysky 2 in 1 40A/200A ESC Receiver And Light Control
|
| Steering Servo |
All-Metal Gear Digital Servo |

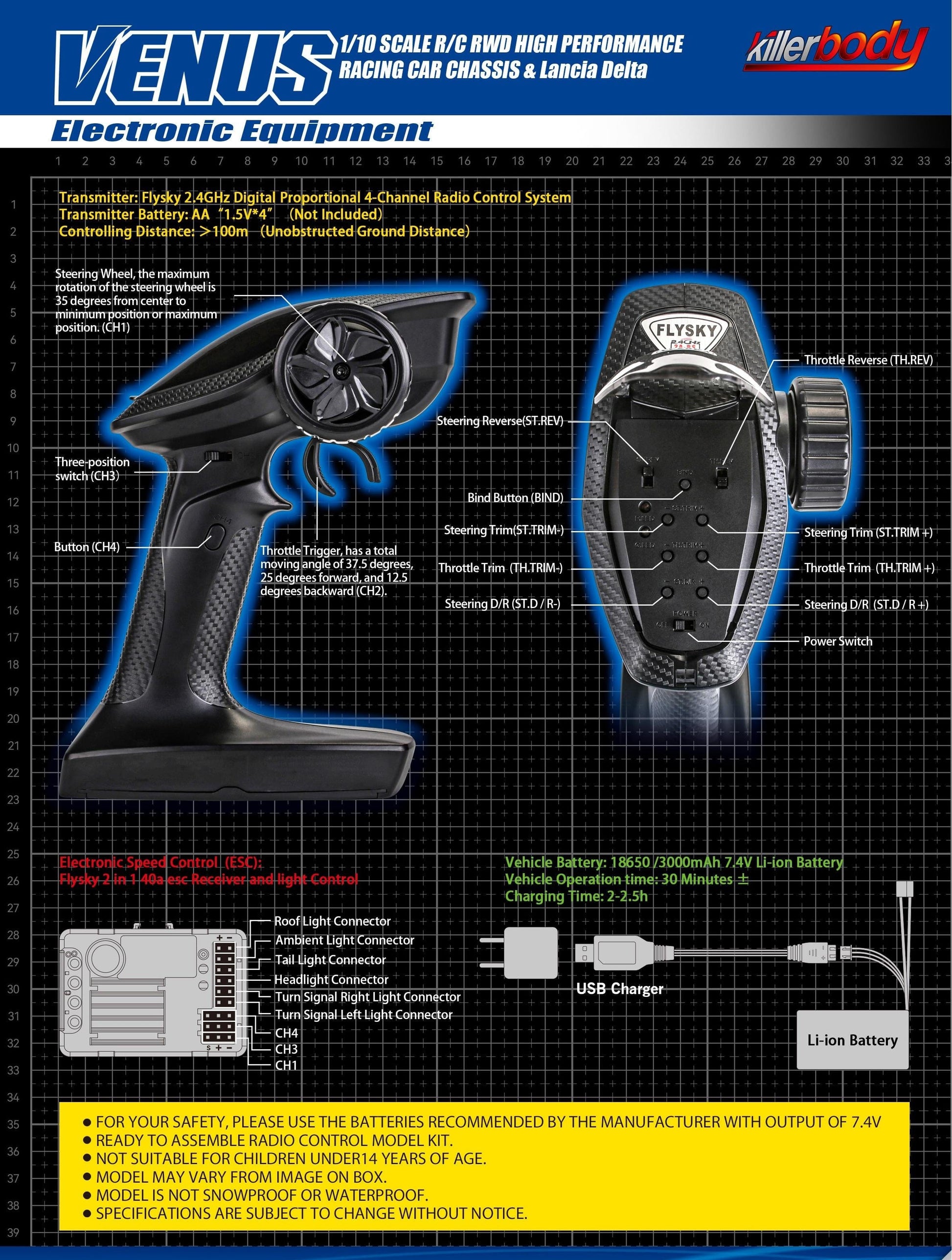

| Transmitter |
2.4GHz Digital Proportional 4-Channel Radio Control System |
| Transmitter Battery |
AA“1.5V*4”（Not Included） |
| Controlling Distance |
＞100m （Unobstructed Ground Distance） |
| Vehicle Battery |
18650 /3000mAh 7.4V Li-ion Battery |
| Vehicle Operation time |
30 Minutes ± |
| Charger |
USB Charger 7.4V-1000mAh
|
| Charging Time |
2-2.5h |

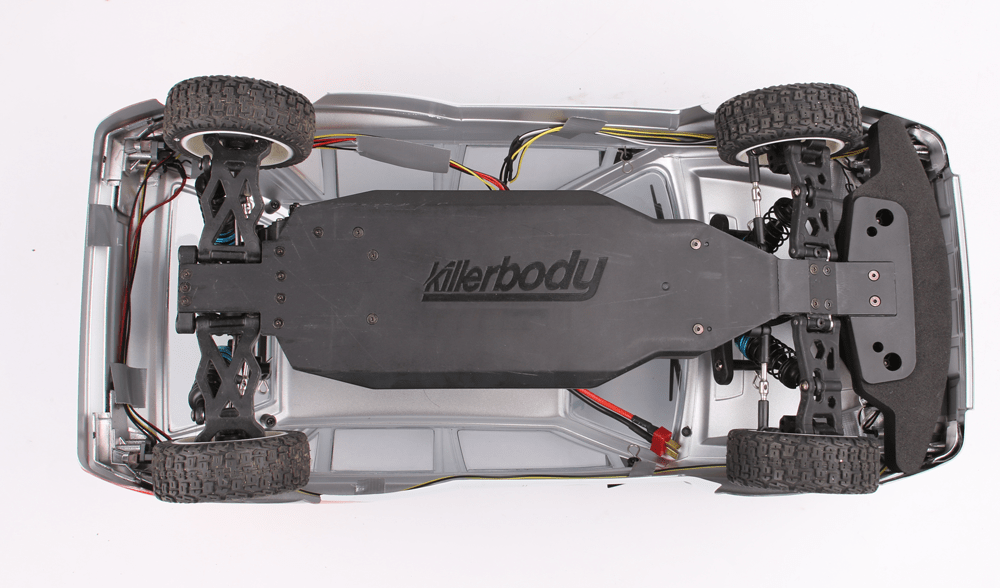

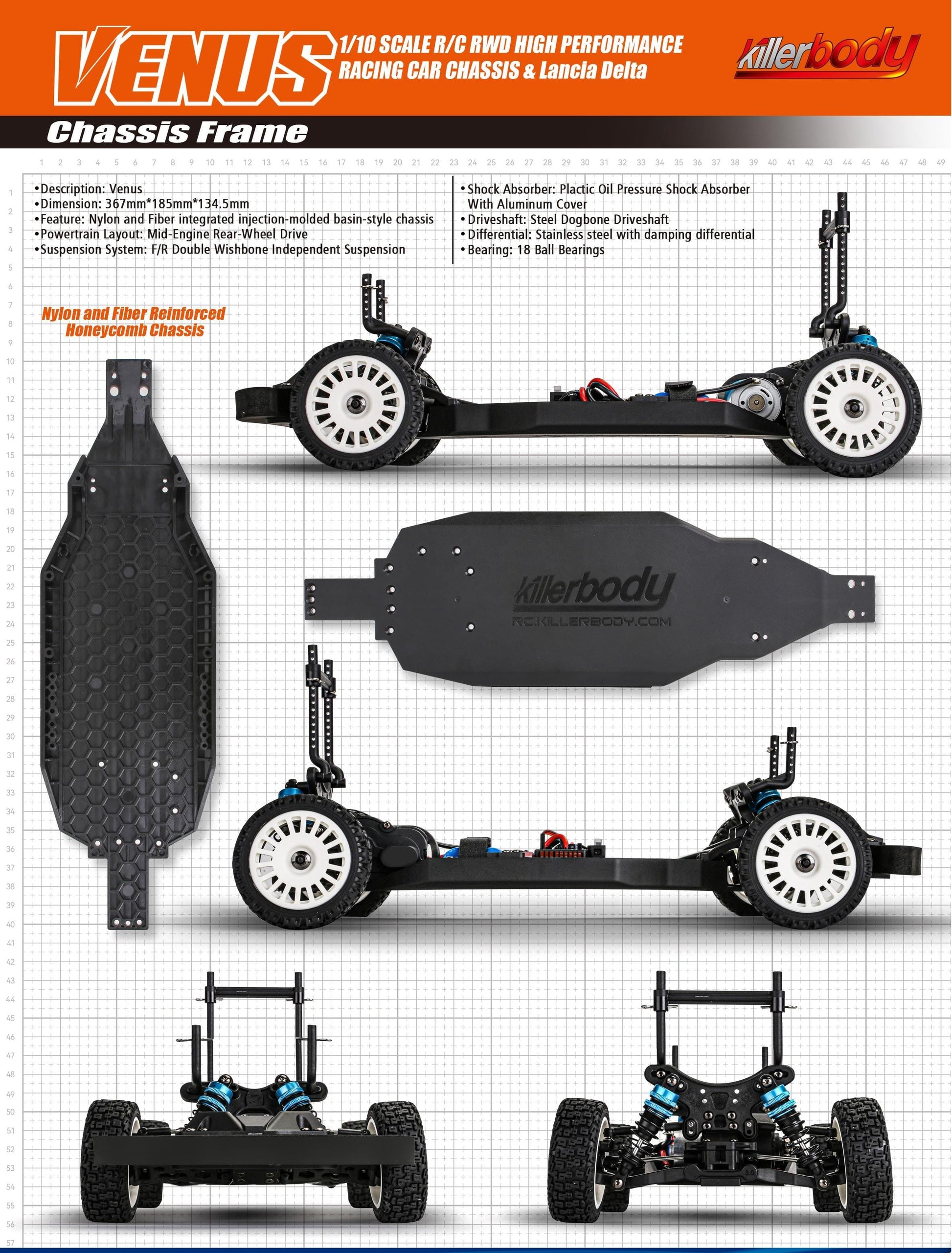

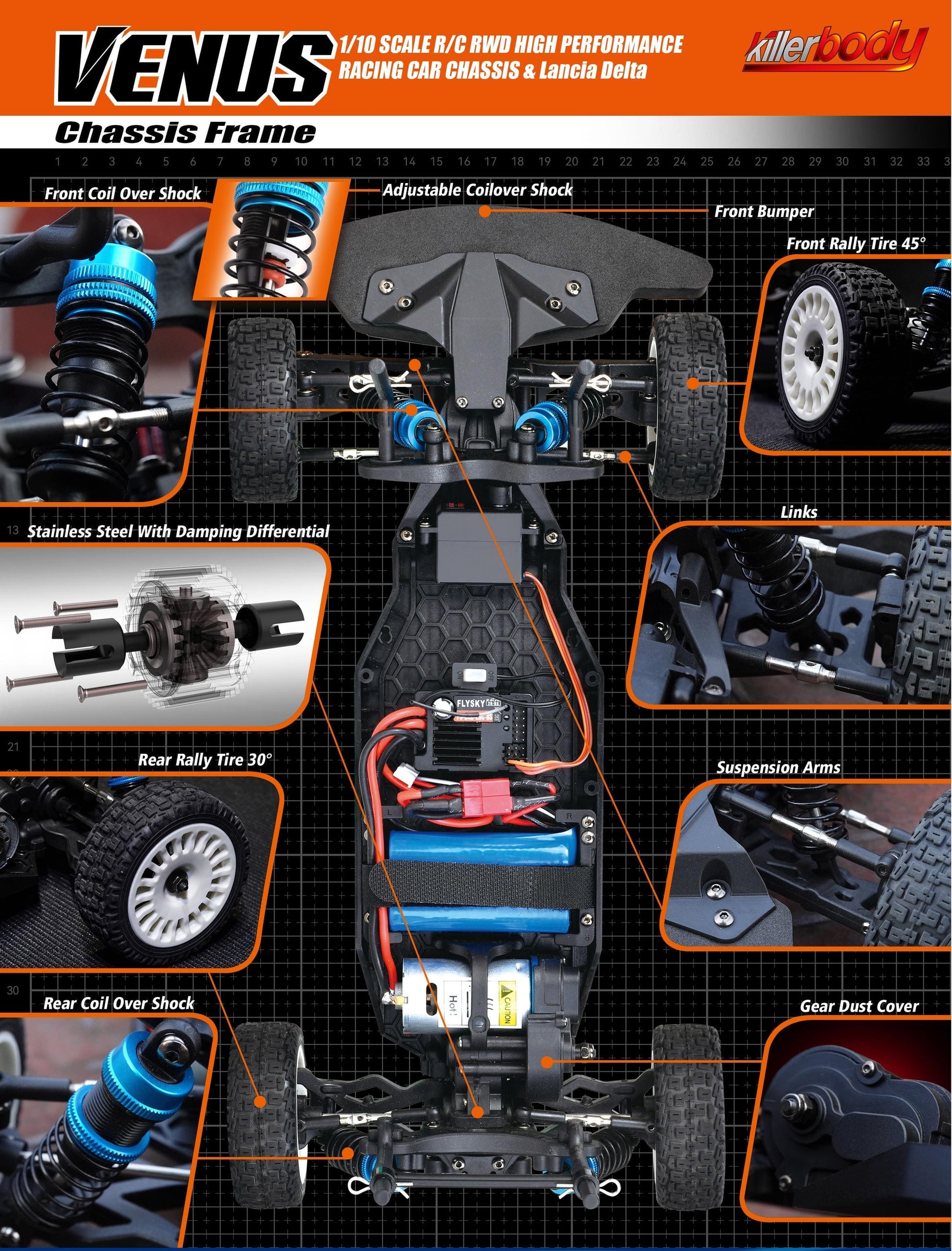

Chassis
Frame
|
Description |
Venus |
|
Dimension |
367mm*185mm*134.5mm |
|
Feature |
Nylon and Fiber Integrated Injection-molded Basin-style Chassis |
| Powertrain Layout |
Mid-Engine Rear-Wheel Drive |
| Suspension System |
F/R Double Wishbone Independent Suspension
|
| Shock Absorber |
Plactic Oil Pressure Shock Absorber With Aluminum Cover |
| Driveshaft |
Steel Dogbone Driveshaft
|
| Differential |
Stainless Steel With Damping Differential |
| Bearing |
18 Ball Bearings
|
